<boxed-text>

Boxed Text

Textual material that is part of the body of a standards document but is outside the flow of the narrative text (for example, a sidebar).

Remarks

Usage: The <boxed-text> element can be used for any text insert whether enclosed in a box or not (for example, marginalia, sidebars, cautions, tips, warnings, note boxes).
When Content is a Form: The @is-form attribute can be used to indicate that the text box contains a form. What constitutes a “form” is not defined by NISO STS.

Attributes

content-type Type of Content
form-type Form Type
id Document Internal Identifier
is-form Is Object a Form
orientation Orientation
originator Originator
position Position
specific-use Specific Use
xml:base Base
xml:lang Language of an Element

Model Description

The following, in order:

This element may be contained in:

<ack>, <app>, <app-group>, <bio>, <body>, <boxed-text>, <disp-quote>, <glossary>, <index>, <index-div>, <index-group>, <license-p>, <named-content>, <non-normative-example>, <non-normative-note>, <normative-example>, <normative-note>, <notes>, <p>, <ref-list>, <sec>, <styled-content>, <term-display>, <term-sec>

Example

...
<p>... without updating the existing inactive for new design
 notice.  When an inactive for new design document is revised
 or a change issued, one of the following notes shall appear
 in a box beneath the document title, as applicable:
 <boxed-text>
  <p>This document is inactive for new design.</p>
 </boxed-text>
 <boxed-text>
  <p>This document is inactive for new design. Refer to
   (fill in document identifier) for new designs.</p>
 </boxed-text>
</p>
...

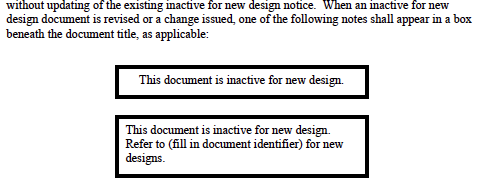

Excerpt of MIL-STD-967 showing use of boxed text to illustrate two alternative notes:
../graphics/boxed-text-from-MIL-STD-967.png
